EOS Gracil 6kW Sauna Heater (213-300cf)
Description

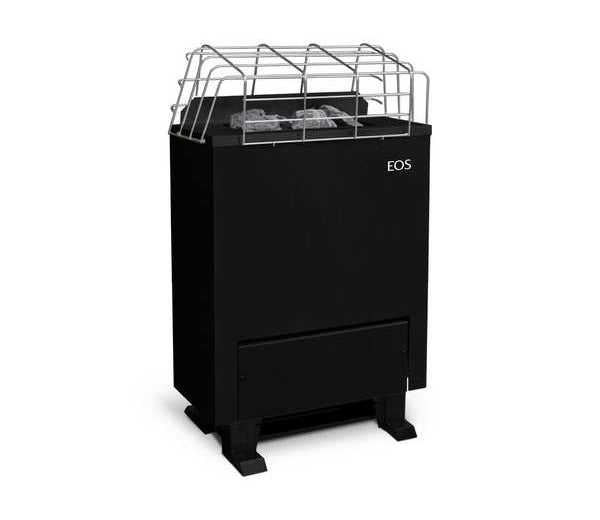

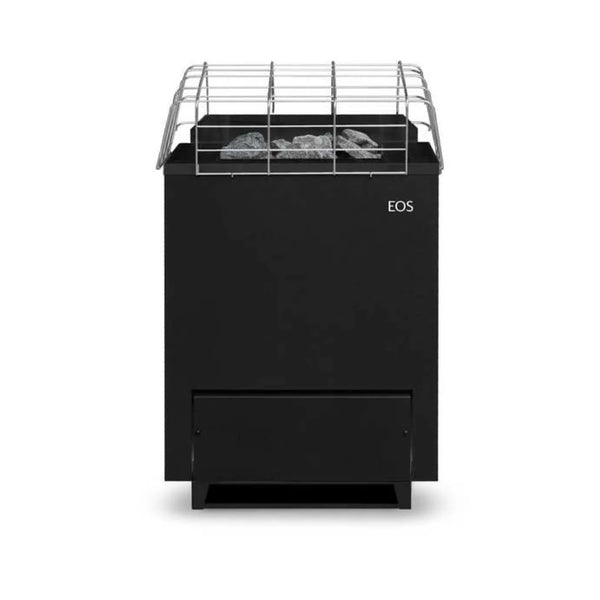

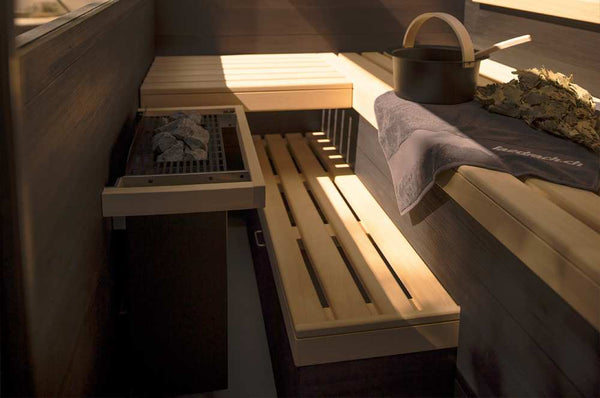

The EOS Gracil W – Black is a sleek, high-efficiency floor-standing sauna heater designed for compact and modern home saunas. Featuring an ultra-slim profile at just 10.8" deep and finished in an elegant matt black coating, it integrates seamlessly into minimalist designs and glass-fronted sauna setups. Its flat rear wall and recessed terminal box enable flush mounting, while a brushed stainless steel top cover adds a touch of refinement. With a generous 44 lbs (20 kg) stone capacity, this heater ensures even and immersive heat distribution. Ideal for sauna rooms between 213 and 300 cubic feet, it delivers a refined blend of form and function.
Features
- Ultra-Slim Profile – Only 10.8" (27.5 cm) Deep

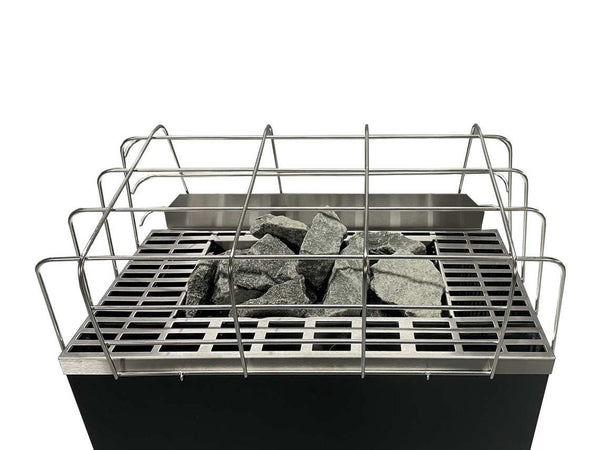

- Elegant Matt Black Finish with Brushed Stainless Steel Top Cover

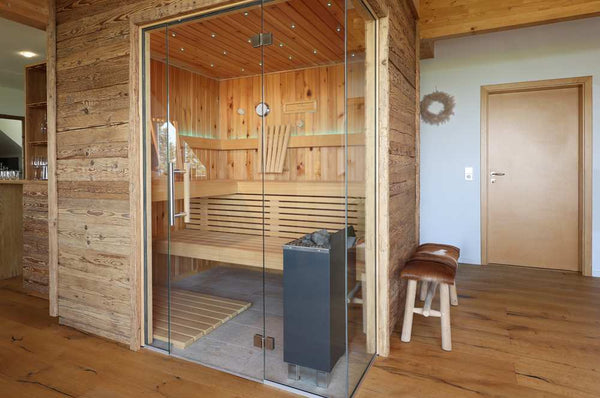

- Flat Rear Wall for Flush Installation Against Glass Panels
- Recessed Terminal Box for a Clean, Minimal Look
- Spacious Rock Store – Holds Up to 44 lbs (20 kg) of Stones (Not Included)

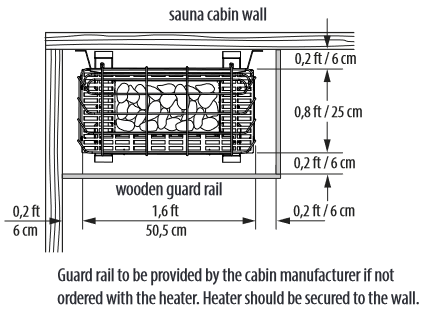

- Optional Wooden Safety Guard Rail Available
- Touch3 Control Panel Required (Sold Separately)
Technical
Built for modern home saunas with limited space, the EOS Gracil W – Black boasts a compact 10.8" depth and minimalist aesthetic. The floor-mounted design allows for versatile placement, even directly in front of glass surfaces. Its matte black body is accented with a brushed stainless steel top, contributing to a premium finish. A recessed terminal box and flat rear enable flush, unobtrusive installation. With a 6.0 kW output, it supports sauna volumes from 213 to 300 cubic feet. The spacious stone compartment improves thermal mass and delivers consistent, radiating heat. Ideal for those seeking design-forward performance.
Specifications
| Model | EOS Gracil W – Black |
|---|---|
| Item Number | 947994 |
| Power Output | 6.0 kW |
| Voltage | 240V / 2 Phase, 60 Hz |
| Heating Capacity | For Sauna Rooms from 213 to 300 Cubic Feet |

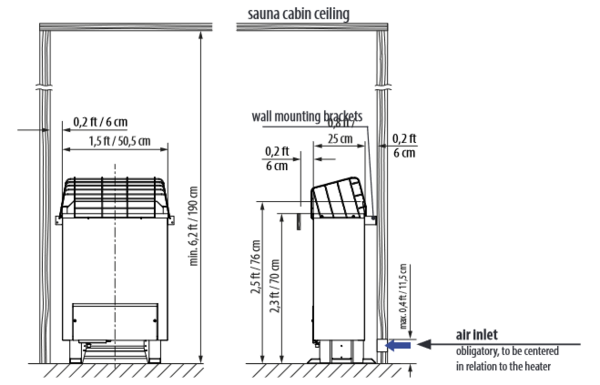

| Recommended Room Size | 34.4–48.4 sq. ft. (with 6.2 ft ceiling height) |
| Stone Capacity | 44 lbs (20 kg) |
| Weight (Without Stones) | 45.2 lbs (20.5 kg) |
| Dimensions (H x W x D) | 28.9" x 19.9" x 10.8" (74 x 50.5 x 27.5 cm) |
| Air Inlet/Outlet Size | 1.2 x 0.2 ft (35 x 5 cm) |
| Control Panel | Touch3 Control Panel Required (Sold Separately) |
In the Box
- EOS Gracil W – Black Sauna Heater
- Brushed Stainless Steel Top Cover
- Integrated Terminal Box
- Mounting Hardware
- Installation Manual
