HUUM Thru-Ceiling Chimney Kit
HUUM Thru-Ceiling Chimney Set – For HUUM Sauna Stoves

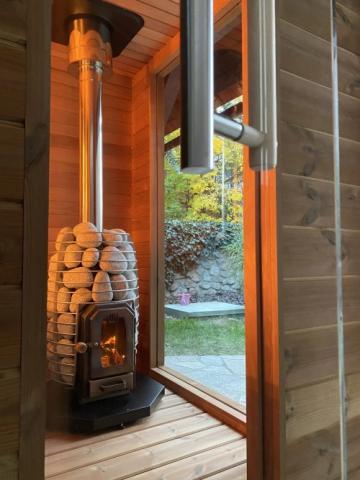

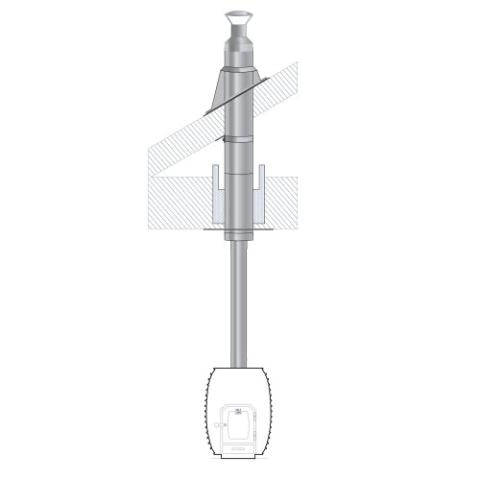

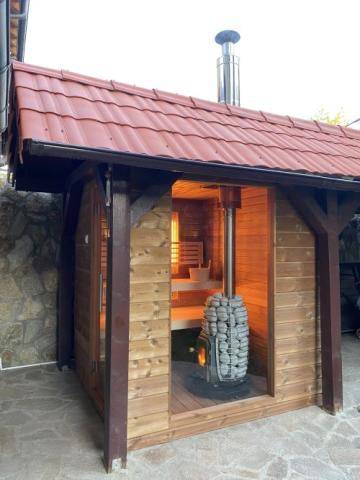

The HUUM Thru-Ceiling Chimney Set is a complete premium-quality venting solution designed to extend your sauna stove chimney straight up through the ceiling and roof. Compatible with all HUUM wood-burning sauna stoves, this set is ideal for installations where vertical clearance is available and a clean, direct path is preferred.
Crafted from durable stainless steel and engineered in Estonia, this system is designed for maximum safety, performance, and visual appeal. With T600-rated cooling insulation, it’s perfect for installations in smaller spaces, maintaining safe distances and reducing heat transfer through structural materials.
This comprehensive kit includes everything needed for a secure and efficient installation, including optional components for ceiling insulation and roof sealing. Whether you're building a new sauna or upgrading an existing one, the HUUM Thru-Ceiling Chimney Set ensures a reliable and elegant venting system.
Key Features:
- Vertical through-ceiling installation for efficient venting
- T600 cooling insulation minimizes heat transfer and enhances safety
- Durable stainless steel construction ensures longevity and resistance to heat
- Compatible with all HUUM sauna stoves
- Optimized for tight spaces with a vertical mounting design
- Designed and manufactured in Estonia
- Includes a 5-year limited warranty

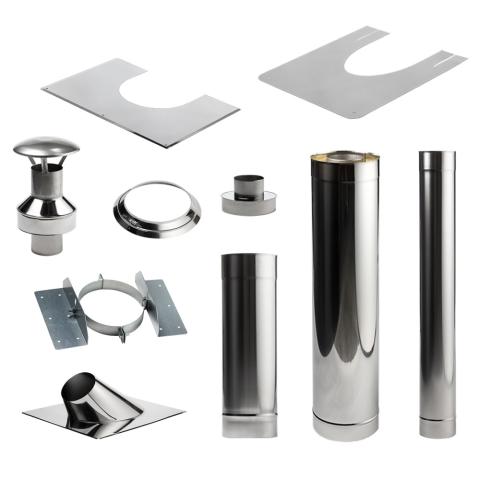

What's Included:
- Single-Wall Pipe – 39.37" (1000 mm)
- Welded Chimney Base
- Double-Wall Chimney – 19.7" (500 mm)
- Double-Wall Straight Pipe
- Inclined Ceiling Cover Plates (2 parts)
- Partition Ceiling Insulation with Cooling T600 (optional)
- Roof Rafter Attachment to Chimney
- Roof Underlay Seal 160–230 mm (optional)
- Ventilated Roof Flashing – 20–35° roof pitch
- Rain Collar
- Chimney Cap
Specifications:
- Model: THRU-CEILING CHIMNEY
- Material: Stainless Steel
- Roof Flashing Angle: 20–35 degrees
- Single-Wall Pipe Length: 39.37" (1000 mm)
- Double-Wall Chimney Length: 19.7" (500 mm)
- Total Length: 108.3" (2750 mm)
