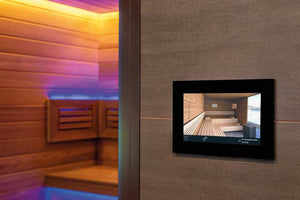

EOS Touch 3 SAUNA CONTROL UNIT
Description
The EOS Touch 3 is a next-generation touchscreen sauna control system designed for unmatched functionality and user convenience. Featuring a sleek, exclusive rimless glass front and a vivid capacitive color touchscreen panel, the EOS Touch 3 redefines modern sauna operation. Whether you manage a single sauna or multiple wellness cabins, this intelligent controller streamlines everything with intuitive access, remote connectivity, and multilingual support. Engineered for both commercial spa environments and luxury home installations, it offers high-level customization, system backup, and future-proof firmware updates – all in one compact, user-friendly device.
Features
- Exclusive Rimless Glass Display – Capacitive color touchscreen for fast, intuitive, and stylish control
- Multi-Cabin Control – Replace up to 8 control panels with a single centralized interface
- Intuitive Graphic User Interface – Icon-based navigation and real-time display in 20 languages
- Guided Setup & Smart Functions – Easy system startup, function alerts, and customization
- Remote Smartphone Access – Compatible with the EOS Spa Control app for mobile control
- Secure Service Level Access – PIN-protected for advanced settings and fine-tuning
- System Backup & Restore – Save time during resets with image recovery functions
- Future-Ready Design – On-site firmware updates ensure lasting compatibility
Technical
The EOS Touch 3 controller is equipped with a digital sensor system for precise temperature regulation, supporting both dry Finnish sauna and humid Bi-O sauna modes. Its multi-cabin management capability allows you to monitor and control several cabins either individually or all at once. With advanced diagnostics, smart error messaging, and comprehensive customization options, the Touch 3 is engineered to simplify even the most complex wellness setups. The system is also designed to support high power outputs and is compatible with 9 kW and 15 kW power connections.
Specifications
| Product Name | EOS Touch 3 |
|---|---|
| Display Type | Capacitive Color Touchscreen (Rimless Glass Front) |
| Control Panel Dimensions (H x W x D) | 142 x 210 x 42 mm / 5.6 x 8.3 x 1.6 inches |
| Mounting Depth | Approx. 37 mm / 1.4 inches |
| Power Box Dimensions (H x W x D) | 250 x 485 x 100 mm / 9.8 x 19 x 3.9 inches |
| Temperature Control Range | 30 – 90 °C / 86 – 194 °F (Finnish Sauna) 30 – 70 °C / 86 – 158 °F (Bi-O Sauna) |
| Heating Time Limitation | 1 h (USA), 6 h / 12 h / Unlimited (CAN) |
| Compatible Power Supply | 9 kW: 240 V 2N AC 60 Hz 9 kW: 208 V 3N AC 60 Hz 15 kW: 208 V 3N AC 60 Hz |
| Cabin Light Output | 5 W – 100 W |
| Fan Output | 5 W – 150 W |
| Sensor System | Digital sensor with safety temperature limiter (up to 90 °C / 194 °F) |
| Connectivity | Compatible with EOS Spa Control mobile app (Wi-Fi enabled) |
| Languages | 20+ Language Options with Clear Text Navigation |
| System Support | Multi-Cabin Management, Firmware Updates, Backup & Restore |
In the Box
- EOS Touch 3 Control Panel (Glass Front Touchscreen)
- Power Supply Box
- Digital Temperature Sensor with Safety Limiter
- Mounting Hardware
- User Manual and Setup Guide
